Twist resistant soft cable for wind power generation

This product is applicable to twist resistant soft wind power generation cable in turbine or installation tower or other similar application of wind power generation equipment used in wind power generation system rated 1.8/3 KV or below, or similar system.

Standard: this product is designed and manufactured according to GB/T29631-2013 or customer requirement.

PRODUCT-USAGE

This product is applicable to twist resistant soft wind power generation cable in turbine or installation tower or other similar application of wind power generation equipment used in wind power generation system rated 1.8/3 KV or below, or similar system.

CHARACTERISTICS


1. Rated voltage is 450/750V, 0.6/1kV, 1.8/3kV respectively;
2. Long term allowable operating temperature : rated voltage 450/750V, 70℃; rated voltage 0.6/1kV, 1.8/3kV, 90℃;
3. Minimum bending radius is 6 times of cable diameter;
4. Applicable cold environment, common type: -25℃, cold resistant type: -40℃, bitter cold resistant type:-55℃;
5. The cable has certain twist resistance, rotation resistance;

SKETCH-OF-PRODUCT-STRUCTURE

Serial No. Of wind power generation cable FD
Flame retardant Class C ZC
Copper conductor (T) skipped
B,C rubber insulation or other equivalent synthetic elastomer insulation E
Silicon rubber or other equivalent mixture insulation G
Silicon rubber or other equivalent mixture sleeve G
TPU elastomer sleeve U
CSM rubber or other equivalent synthetic elastomer sleeve H
CR or other equivalent synthetic elastomer sleeve F
Thermal plasticity elastomer sleeve S
Metal shield P
Applicable cold environment:, -40℃ (cold resistant type) :-55℃ (bitter cold resistant type)  -25℃

-55
-40
-25

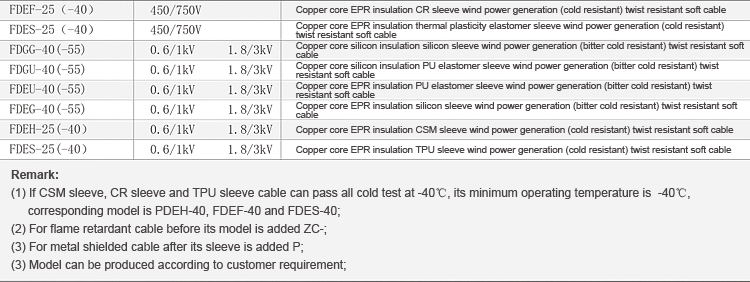

NAME-OF-COMMON-CABLE-MODEL

风能_2

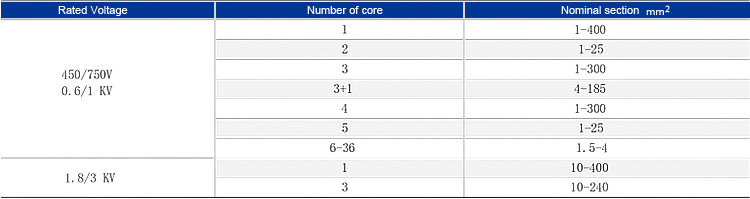

SPECIFICATION

风能_3

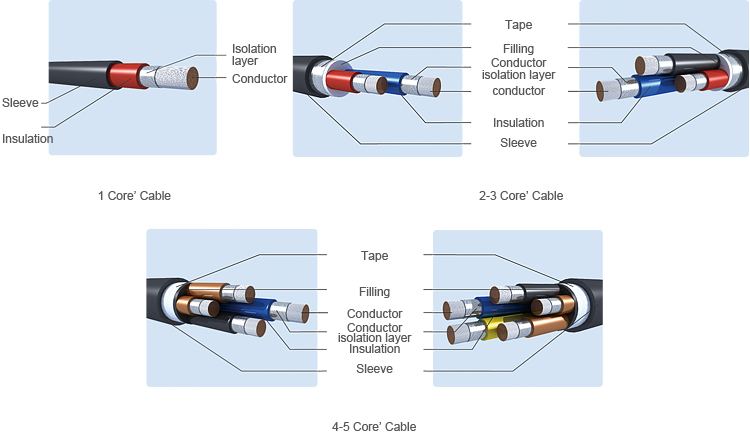

SKETCH-OF-PRODUCT-STRUCTURE

风能_4

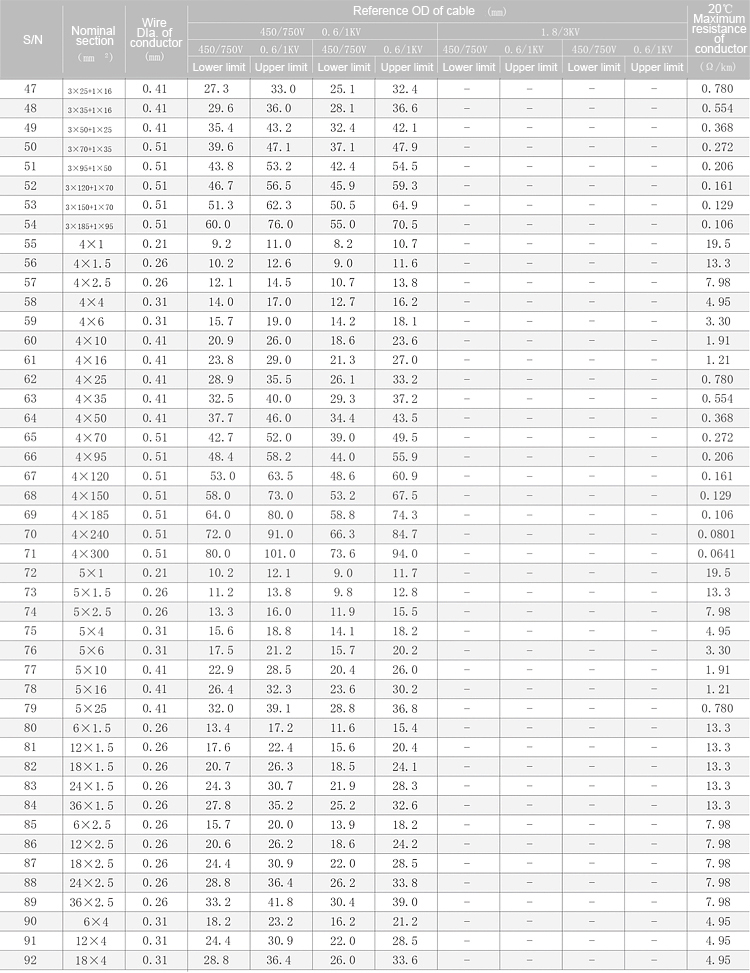

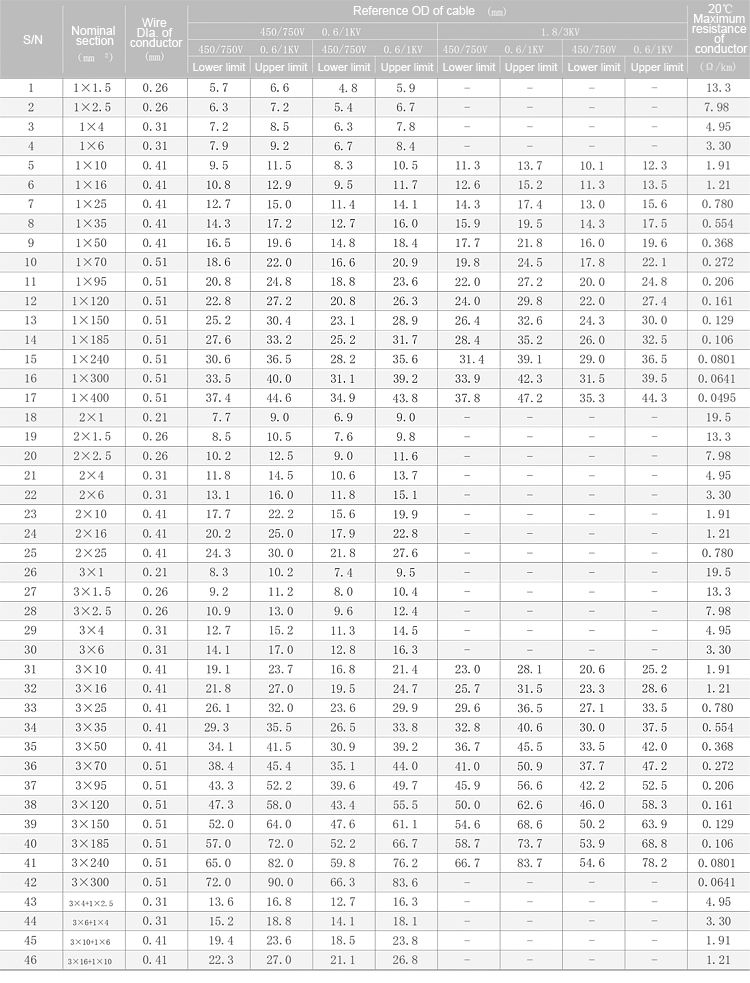

DIMENSION-AND-MAIN-TECHNICAL-PARAMETERS-OF-CABLE

风能_5
风能_6

Delivery requirement:
1. According to agreement by both sides cable delivery of any length is allowed, with length tolerance ±0.5%;
2. According to customer demand and agreement, similar model and specification beyond the catalog can be
    accepted;
3. User’s requirement for characteristics such as flame retardance shall be agreed otherwise in the contract.
