Solar photovoltaic cable

Solar photovoltaic cable is a kind of cable cross linked by electron beam, able to resist tough climate environment and mechanical impact in the equipment. It has characteristics such as ozone resistance, ultraviolet resistance, acid and alkaline resistance, heat resistance, bitter cold resistance, dent resistance, Halogen, flame retardance, etc.

Standard: the product execute 2PfG standard Type Test of Halogen Free Cable for Photovoltaic Equipment.

PRODUCT-FEATURES

Solar photovoltaic cable is a kind of cable cross linked by electron beam, able to resist tough climate environment and mechanical impact in the equipment. It has characteristics such as ozone resistance, ultraviolet resistance, acid and alkaline resistance, heat resistance, bitter cold resistance, dent resistance, Halogen, flame retardance, etc. Outdoor, its service life is 8 time that of common rubber cable, 32 time of PVC cable. These cables and components not only have optimum weatherability, ultraviolet resistance and ozone erosion resistance, but also can withstand wider temperature range (rated operating temperature is 40°C to 125°C).

PRODUCT-USAGE

Application: Solar photovo;taic cable is mainly used in photovoltaic equipment system with Line-line voltage at DC end up to DC 1.8 KV, Class II cable protection, operating environment condition (-40℃ to +90℃), max. Line temperature 120℃, design life 25 years. It is compatible with standard connector, connection system. Content printed on model PV1-F: “ TUV TüV2 PfG  1169 PV1-F 0.6/1kv 1×specification mm2 ZHE JIANG WAN MA CO.,LTD number of meter”

CHARACTERISTICS

Operating characteristics: Operating temperature of cable
1. Long term allowable max temperature of cable conductor is 125℃, short circuit temperature is 250℃ (5 s).
2. Environment temperature tolerance of cable is -40~90℃.

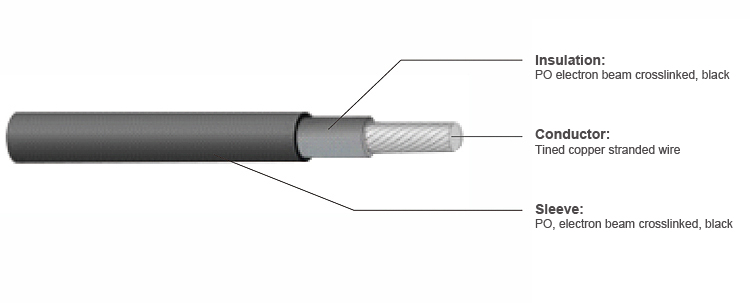

SKETCH-OF-PRODUCT-STRUCTURE

光伏电缆_1

 SPECIFICATION

 光伏电缆_2

 DIMENSION-AND-MAIN-TECHNICAL-PARAMETERS-OF-CABLE

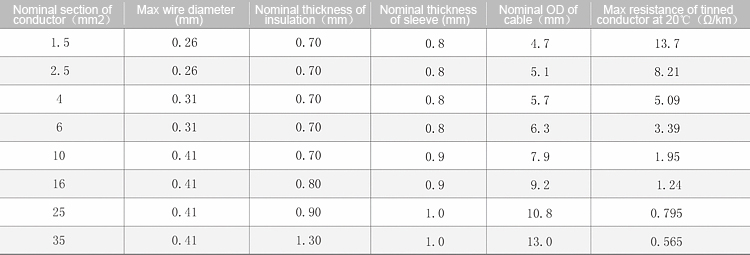

 Dimensions of photovoltaic cable and resistance parameters of conductor

光伏电缆_3

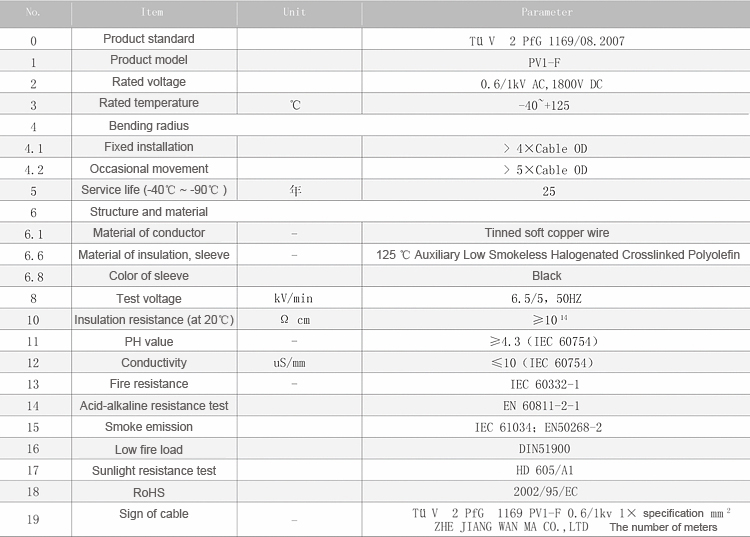

  Technical parameters of photovoltaic cable

光伏电缆_4

Delivery requirement:
1. According to agreement by both sides cable delivery of any length is allowed, with length tolerance ±0.5%;
2. According to customer demand and agreement, similar model and specification beyond the catalog can be
    accepted;
3. User’s requirement for characteristics such as flame retardance shall be agreed otherwise in the contract;
