Common rubber soft cable

This product is applicable to mobile electric equipment,appliance, power tool and various mobile electrical equipment rated AC 450/750V and below. Heavy duty rubber sleeve cable can be used to various mobile electrical equipment, withstanding greater mechanical external force.

Standard: GB/T5013-2008 JB/T8735.2-2011


PRODUCT-USAGE

This product is applicable to mobile electric equipment,appliance, power tool and various mobile electrical equipment rated AC 450/750V and below. Heavy duty rubber sleeve cable can be used to various mobile electrical equipment, withstanding greater mechanical external force.

CHARACTERISTICS


1. Rated voltage: YZ, YZW model is 300/500V; YC, YCW is 450/750.
2. Long term allowable operating temperature is no more than 65℃.

NAME-OF-COMMON-CABLE-MODEL

Y - mobile, Z - medium duty, C - heavy type, W - derived cable with weatherabulity and oil resistance, suitable for
outdoor or oil touched application, H - welder


Model Name Function
 YZ, YZW Medium duty rubber sleeve soft cable Used in various mobile electric equipment and tool
 YC, YCW Heavy duty rubber sleeve soft cable Used in various mobile electrical equipment
 YH Welder cable Can withstand greater mechanical external force
 YHF Synthetic elastomer rubber sleeve welder cable Mainly used for welder connection line

SPECIFICATION

Model Rated voltage(v) Number of core  Nominal section(mm2)
YZ, YZW 300/500 2/3/4/5 0.75~6
YC, YCW 450/750 1 1.5~400
2 1~95
3/4 1~150
5 1.5~150
YH, YHW No voltage and 1 16~95

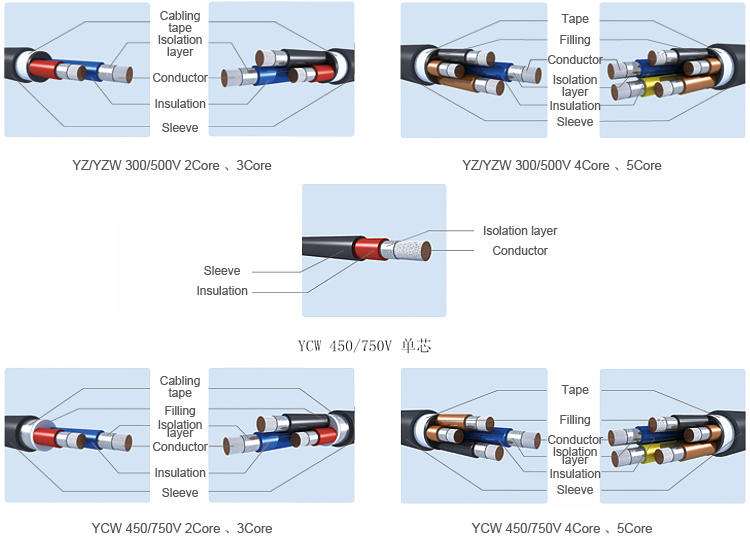

SKETCH-OF-PRODUCT-STRUCTURE

橡套软电缆-1

DIMENSION-AND-MAIN-TECHNICAL-PARAMETERS-OF-CABLE

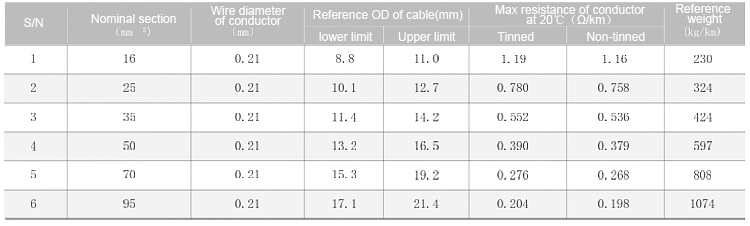

60245 IEC81(YH)、60245 IEC82(YHF) Parameter table of electric welder cable

橡套软电缆-2

Delivery requirement:
1. According to agreement by both sides cable delivery of any length is allowed, with length tolerance ±0.5%;
2. According to customer demand and agreement, similar model and specification beyond the catalog can be
    accepted;

DIMENSION-AND-MAIN-TECHNICAL-PARAMETERS-OF-CABLE

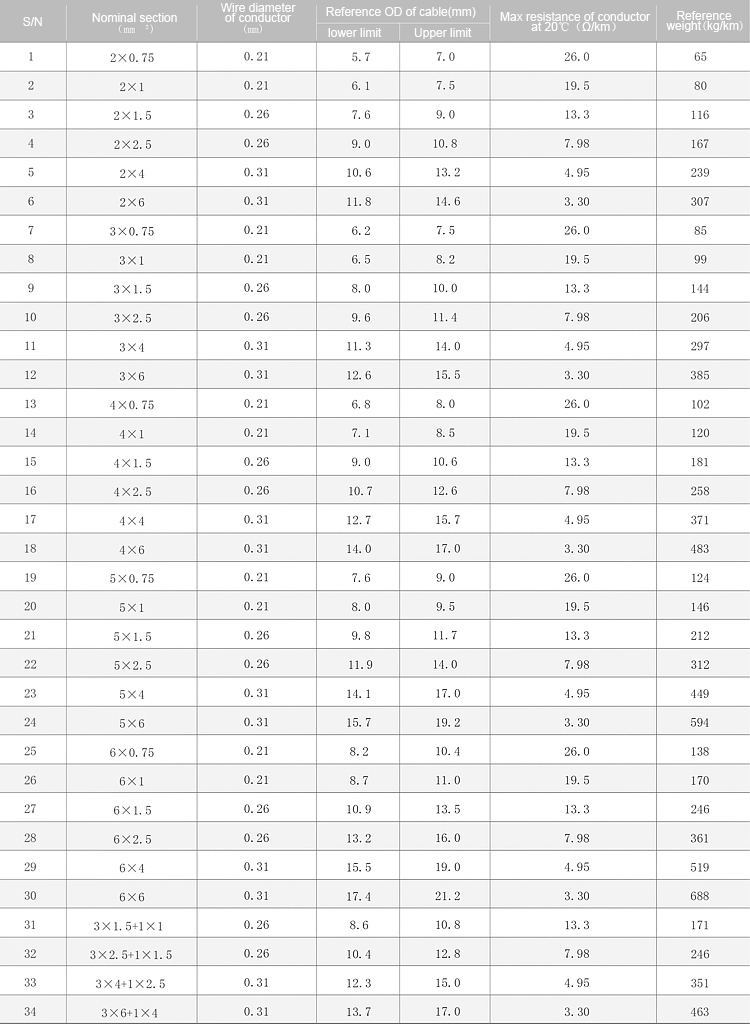

Performance data of medium duty rubber sleeve cable YZ, YZW 300/500V

橡套软电缆-3

Performance data of heavy duty rubber sleeve cable YC、YCW   450/750V (1)

橡套软电缆-4

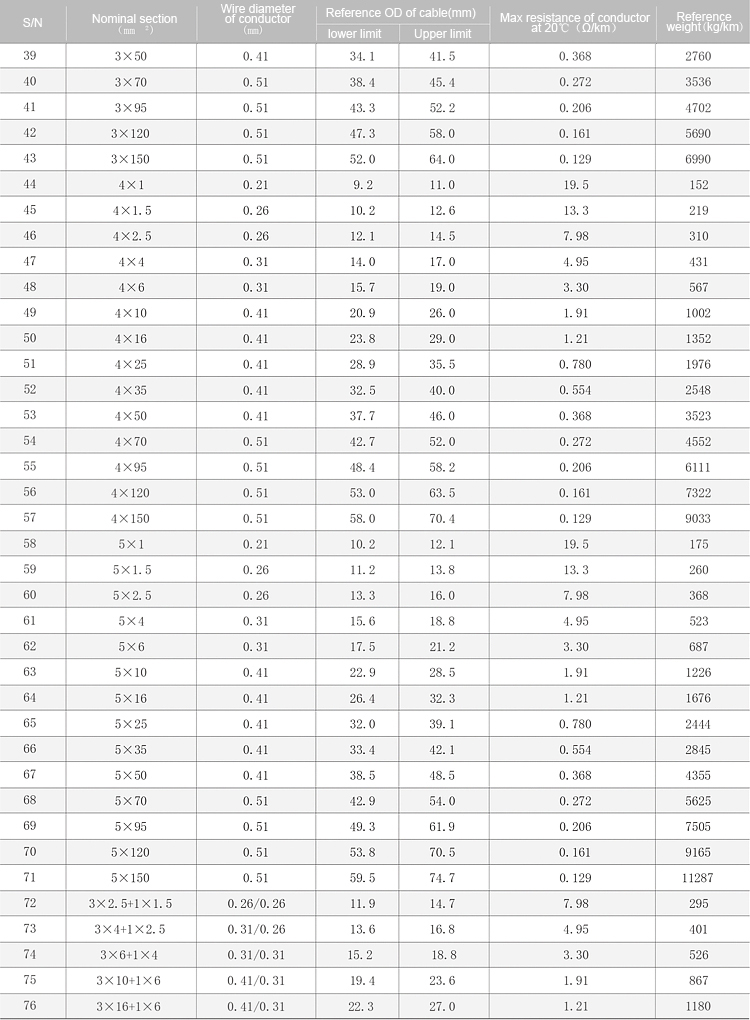

Performance data of heavy duty rubber sleeve cable YC、YCW   450/750V (2)

橡套软电缆-5

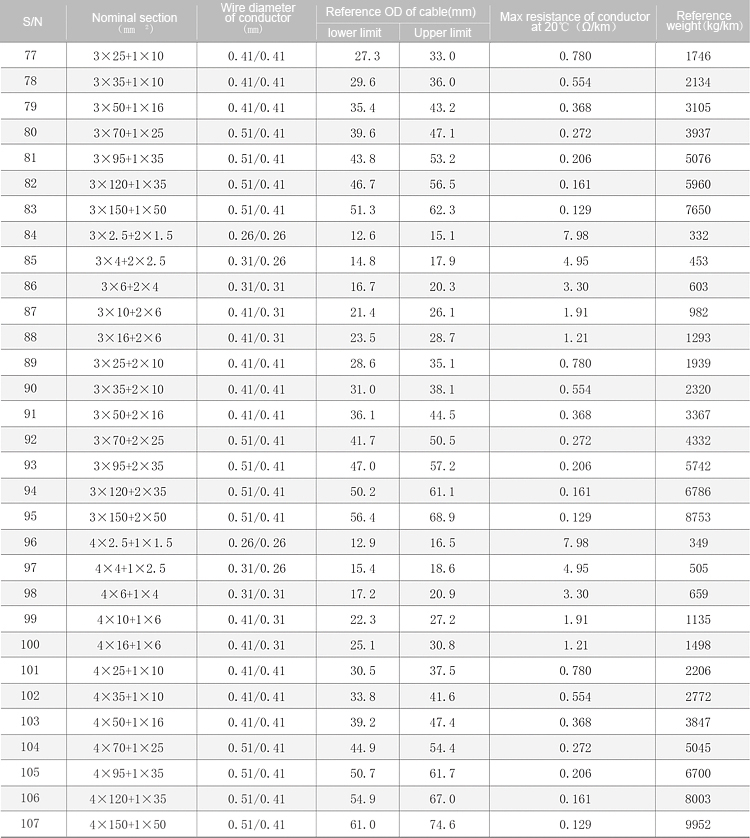

Performance data of heavy duty rubber sleeve cable YC、YCW   450/750V (3)

橡套软电缆-6

Delivery requirement:
1. According to agreement by both sides cable delivery of any length is allowed, with length tolerance ±0.5%;
2. According to customer demand and agreement, similar model and specification beyond the catalog can be
    accepted;
3. User’s requirement for characteristics such as flame retardance shall be agreed otherwise in the contract;
